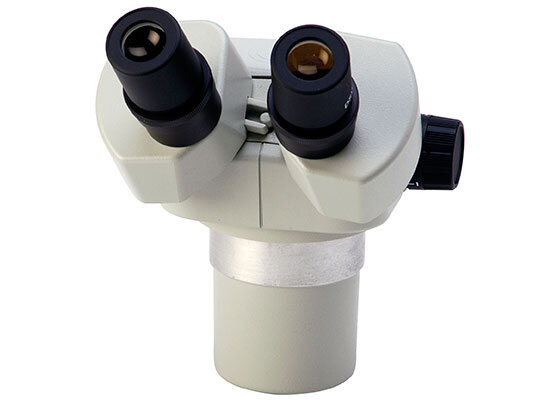

Body Type - Binocular, 360° rotatable, 45° inclined eyepiece tube.
Eyepieces - Two 10x(FN23)eyepieces supplied with microscope body.
Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range.
Auxiliary lens - 0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope.
Working Distance - 108 mm. without auxiliary lens, 240 mm. with 0.5x auxiliary lens, 132 mm. with 0.75x auxiliary lens, 50 mm. with 1.6x auxiliary lens, 41 mm. with 2x auxiliary lens.
Zoom Ratio - 7.46:1.
Diopter Adjustment - On both eye tubes: +5.6D-.72D.
Interpupillary Distance - Adjustable from 52 to 75 mm.
Optical System - Greenough.
Item Weight - 4 lbs.
Specification
Body Type - Binocular, 360° rotatable, 45° inclined eyepiece tube.
Eyepieces - Two 10x(FN23)eyepieces supplied with microscope body.
Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range.
Auxiliary lens - 0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope.
Working Distance - 108 mm. without auxiliary lens, 240 mm. with 0.5x auxiliary lens, 132 mm. with 0.75x auxiliary lens, 50 mm. with 1.6x auxiliary lens, 41 mm. with 2x auxiliary lens.
Zoom Ratio - 7.46:1.
Diopter Adjustment - On both eye tubes: +5.6D-.72D.
Interpupillary Distance - Adjustable from 52 to 75 mm.
